UL規格太陽光発電ケーブル

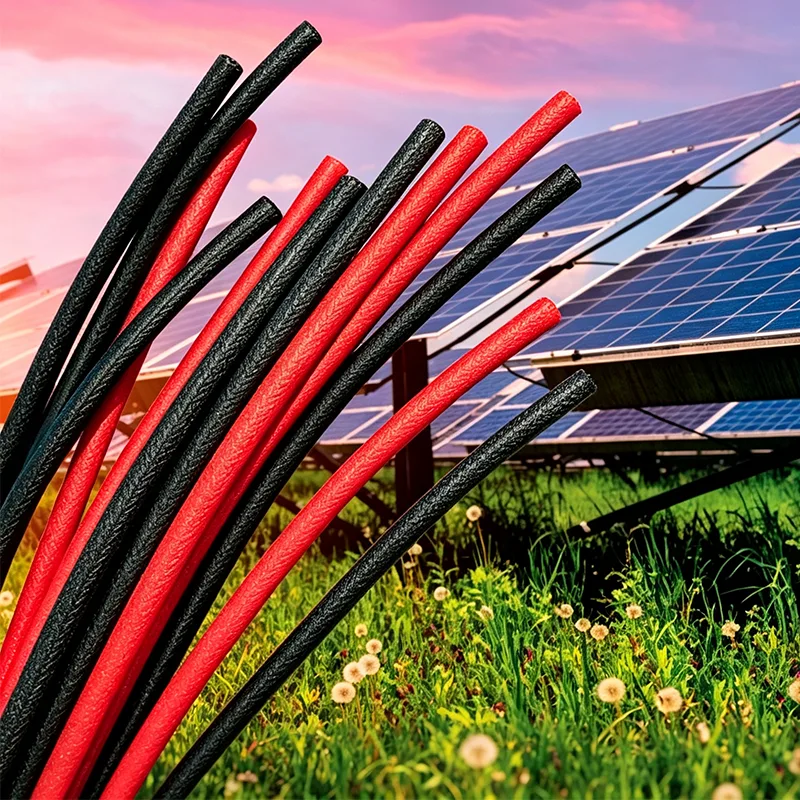

Designed for panel, inverter, and array wiring, UL Standard Photovoltaic Cables offers flexibility, flame retardancy, and mechanical durability. Its double-layer insulation resists ozone, humidity, chemicals, and aging, making it ideal for rooftop, ground-mounted, and industrial installations.

With UL, RoHS, and CE certifications, LINSHENG is trusted by EPC contractors, installers, and distributors worldwide. As a direct manufacturer with 12 years of export experience, we offer OEM/ODM customization, competitive pricing, and global shipping.

Reliable Cable Performance for Long-Term Solar Projects

Solar systems are built to last 25+ years, so every component must endure harsh conditions—UV, temperature swings, moisture, and mechanical stress. Poor-quality cables often cause insulation cracking, conductor oxidation, higher resistance, and energy loss.

LINSHENG PV Cable addresses these issues with premium materials and strict quality control, ensuring stable performance, reduced maintenance, and long-term returns for developers and installers. Choosing LINSHENG means greater safety, fewer failures, and stronger investment protection.

Technical Specifications and Product Parameters

1. Electrical and Mechanical Specifications

2. Available Cable Sizes

Material Technology Designed for Solar Environments

1. High Performance Tinned Copper Conductor

The conductor determines the electrical efficiency and reliability of a solar cable. LINSHENG PV Solar Cable uses 99.99% high-purity tinned copper strands, providing excellent conductivity while preventing oxidation during long-term outdoor exposure.

The tin coating creates an additional protective layer around copper strands, improving corrosion resistance in humid, coastal, and industrial environments. The flexible stranded structure also allows installers to easily route cables around solar modules, inverters, and mounting systems.

Compared with ordinary copper conductors, tinned copper helps maintain stable electrical resistance over years of operation, reducing energy loss and improving photovoltaic system efficiency.

2. Advanced XLPE Insulation Protection

Photovoltaic cables operate outdoors for decades, so insulation performance is essential. LINSHENG uses specially formulated XLPE insulation materials that provide excellent resistance against UV radiation, temperature changes, ozone, and moisture.

The insulation system maintains mechanical strength even after repeated exposure to harsh weather conditions. This helps prevent cracking, aging, and electrical leakage problems commonly found in low-quality solar cables.

3. Double Layer Safety Structure

LINSHENG solar cables feature a dual protection design consisting of inner insulation and an outer protective jacket. This structure improves resistance against mechanical damage, chemical exposure, and environmental stress. The flame-retardant material helps reduce fire risks and provides additional safety protection for photovoltaic installations installed on buildings, industrial facilities, and open land.

Performance Testing and Quality Verification

1. UV Aging and Weather Resistance Testing

Solar cables must withstand years of direct sunlight exposure. LINSHENG conducts accelerated UV aging tests to simulate extreme outdoor conditions.

During testing, LINSHENG PV Solar Cable maintained more than 95% of its original tensile strength after extended UV exposure at elevated temperatures. The XLPE insulation showed no cracking or significant performance degradation.

This testing ensures that the cable can maintain reliable operation in regions with strong sunlight, including desert areas and high-temperature climates.

2. Temperature Cycling Test

Photovoltaic systems experience daily temperature changes from cold mornings to hot afternoons. LINSHENG cables are tested through repeated temperature cycling between -40°C and +90°C. After testing, the insulation structure remained stable without cracking, separation, or electrical performance loss.

3. Electrical Safety Testing

Every production batch undergoes electrical performance inspections including voltage withstand testing, insulation resistance testing, and conductor resistance measurement. These procedures ensure each cable meets UL requirements and provides safe power transmission in photovoltaic systems.

Application Areas of LINSHENG PV Solar Cable

1.Residential Solar Installations

LINSHENG PV Solar Cable is widely used in residential rooftop photovoltaic systems for connecting solar panels, junction boxes, and inverters. The flexible cable design makes installation easier in limited roof spaces, while the UV-resistant insulation ensures reliable outdoor operation throughout different seasons.

For typical household solar systems, 4mm² cables are commonly selected for panel-to-inverter connections due to their balance between current capacity and installation flexibility.

2.Commercial and Industrial Solar Projects

Commercial buildings require stable solar power transmission to reduce energy costs and improve sustainability. LINSHENG solar cables provide reliable performance for warehouses, factories, office buildings, and commercial facilities where continuous operation is important.

3.Utility-Scale Solar Farms

Utility solar farms require cables that can withstand long-distance installation, extreme weather conditions, and continuous electrical loads. The durable insulation and corrosion-resistant conductor design make LINSHENG cables suitable for large photovoltaic arrays and renewable energy infrastructure.

International Application Case

5MW Solar Project in Arizona, USA

A renewable energy company in Arizona developed a 5MW ground-mounted solar project located in a desert environment. The project faced challenges including intense sunlight exposure, high daytime temperatures, and long-term outdoor operation requirements. The EPC contractor selected LINSHENG UL Standard Photovoltaic Cables because the cable complied with UL 4703 requirements and offered excellent UV resistance and temperature performance.

During more than five years of operation, the solar system maintained stable electrical performance without cable insulation cracking or significant maintenance issues. The installation team also reported that the flexible structure of LINSHENG cables improved wiring efficiency during project construction. This successful application demonstrates LINSHENG’s capability to provide reliable solar cable solutions for demanding international renewable energy projects.

Manufacturing Capability and Quality Assurance

1. Professional Manufacturing Process

LINSHENG controls every stage of PV cable production, from raw copper material inspection to final product testing. The manufacturing process includes conductor drawing, tin coating, insulation extrusion, cable assembly, and electrical performance inspection. Advanced production equipment ensures consistent quality and dimensional accuracy.

Each batch is tested before shipment to guarantee stable performance for global photovoltaic applications.

2. Global Export Experience

With 12 years of international export experience, LINSHENG has supplied cable solutions to customers in North America, Europe, Asia, and other renewable energy markets. The company supports international projects through customized specifications, technical documentation, OEM branding, and flexible logistics solutions.

Why Choose LINSHENG as Your PV Cable Supplier

1. Stable Quality for Long-Term Solar Systems

LINSHENG understands that photovoltaic projects require components with long service life and consistent performance. Through strict material control and testing procedures, LINSHENG provides dependable cable solutions that support long-term solar system operation.

2. Professional Technical Support

LINSHENG engineering teams provide support for cable selection, installation requirements, and project applications. Customers can receive professional recommendations based on system voltage, installation environment, and project scale.

3. Customized OEM Solutions

For distributors, solar equipment manufacturers, and EPC companies, LINSHENG provides customized services including cable sizes, colors, packaging, labeling, and special project requirements.

Certifications and Compliance

Frequently Asked Questions

1. What makes PV solar cable different from ordinary electrical cable?

PV solar cables are specially designed for outdoor photovoltaic applications. They require stronger UV resistance, temperature durability, moisture protection, and long-term insulation performance compared with standard electrical cables.

2. How long can LINSHENG UL Standard Photovoltaic Cables last?

Under proper installation conditions, LINSHENG PV cables are designed to provide more than 25 years of reliable service, matching the expected lifespan of many solar power systems.

3. Can LINSHENG PV cables be installed outdoors?

Yes. LINSHENG cables are designed for outdoor photovoltaic applications with UV-resistant insulation, weather protection, and temperature resistance from -40°C to +90°C.

4. Which cable size should be used for solar panels?

The appropriate size depends on system voltage, current, cable length, and installation requirements. Generally, 4mm² cables are commonly used for residential systems, while 6mm² cables are suitable for larger projects with longer cable distances.

5. Does LINSHENG provide customized PV cable solutions?

Yes. LINSHENG supports OEM and ODM services including customized sizes, colors, packaging, and branding requirements.

Request Your UL Standard Photovoltaic Cables Sample Today

Selecting the right solar cable supplier is essential for building safe and efficient photovoltaic systems. LINSHENG combines advanced manufacturing technology, strict quality control, and international export experience to provide reliable solar cable solutions worldwide.

Whether you are a solar installer, EPC contractor, distributor, or renewable energy company, LINSHENG can provide customized cable solutions that meet your project requirements.
